Concrete Floor Thickness: Essential Guide for Car Hoist Installation

Essential Guidelines for the Successful Installation of a Car Hoist in Your Garage

When contemplating the installation of a car hoist in your garage, it is crucial to ensure that your concrete floor adheres to the necessary specifications. A strong and stable foundation is vital not only for the effective operation of the hoist but also for the protection of your vehicles and the safety of anyone using the equipment. Thorough preparation and strict compliance with installation protocols can greatly improve both the functionality and durability of your hoist, ultimately making your investment in this equipment a worthwhile decision.

Most car hoists require a concrete slab that is at least 100mm (4 inches) thick. This specific measurement is essential as it enables the uniform distribution of weight from both the vehicle and the hoist, thus minimising the likelihood of cracking or sinking over time. For those intending to use heavy-duty hoists, it is advisable to consider a thicker concrete slab, potentially increasing to 150mm (6 inches), to ensure optimal performance and safety during operation.

Comprehensive Steps to Accurately Determine the Required Concrete Thickness for Your Car Hoist

The thickness of your concrete floor is a critical aspect in ensuring the safe installation and effective operation of a car hoist. Various factors must be considered when assessing the appropriate depth for your slab to ensure that it can adequately support the loads it will encounter during use. Understanding these parameters will help prevent costly errors and significantly enhance the safety of your garage setup.

Assessing Load Capacity for Your Car Hoist Installation

Car hoists impose considerable stress on the concrete floor beneath them. Therefore, it is essential to comprehend the total weight that your concrete floor needs to support. This consideration encompasses not only the weight of the vehicle but also the weight of the hoist itself, which can add a significant load to the floor.

A standard passenger vehicle typically weighs between 1,500 to 2,000 kg, while the hoist might contribute an additional 500 to 1,000 kg. Furthermore, it is wise to factor in extra weight as a safety buffer to ensure that the structure can accommodate unforeseen circumstances without compromising safety.

For the majority of residential garages, a concrete thickness ranging from 100 mm to 150 mm is generally adequate. However, if you plan to lift significantly heavier vehicles, it may be necessary to consider a thicker slab to guarantee safety and stability during operation.

Engaging a structural engineer is a prudent course of action, as they possess the expertise to provide tailored recommendations and assist you in determining the precise thickness required based on your unique needs and circumstances.

Understanding Different Types of Car Hoists and Their Concrete Thickness Requirements

It is essential to recognise that various types of car hoists have distinct requirements regarding concrete thickness. Two-post lifts and four-post lifts are two popular choices among homeowners seeking to integrate a car hoist into their garage.

Two-post lifts typically exert pressure on specific points, necessitating a thicker concrete slab, often around 150 mm or more, to effectively accommodate the concentrated load. This ensures that the structure can handle the significant forces applied during operation without risk of failure.

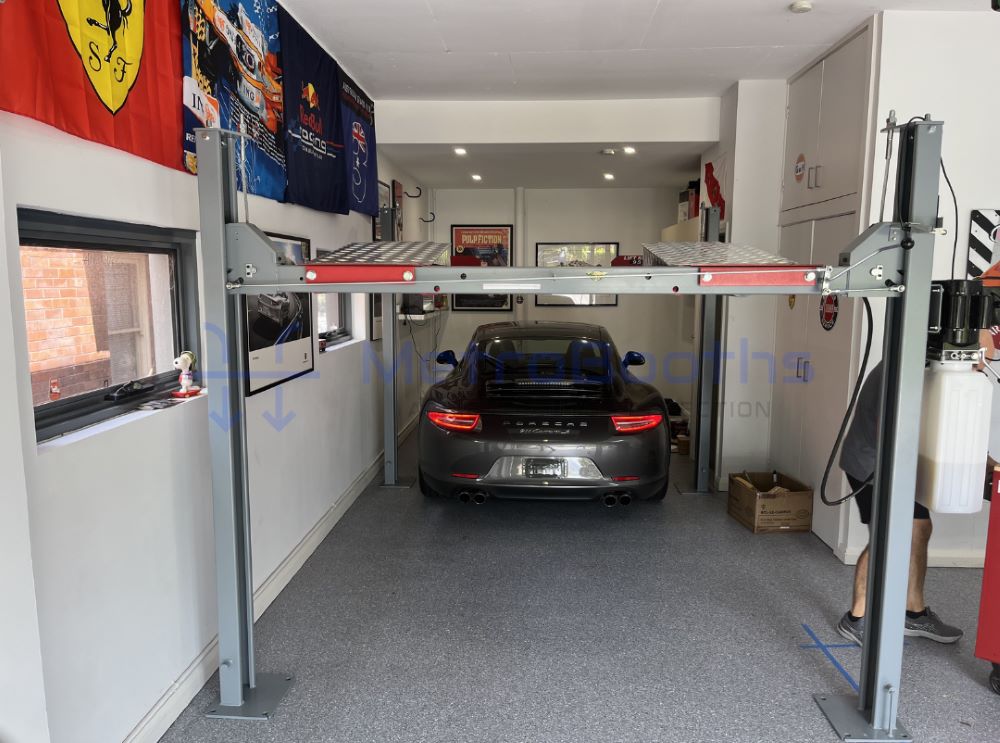

In contrast, four-post lifts distribute weight more evenly across a larger area, enabling them to function efficiently with a slightly thinner slab, usually within the range of 100 mm to 125 mm. This understanding can significantly impact your planning and installation process, ensuring you select the most suitable option for your needs.

Always refer to the manufacturer's specifications for the hoist you are considering, as they typically outline the minimum concrete thickness necessary for safe operation. Adhering to these guidelines is crucial for optimal performance and the longevity of your equipment.

Keep in mind that these recommendations serve as general guidelines. Your specific requirements may differ based on the layout of your garage and the types of vehicles you intend to lift.

Appreciating the Importance of Concrete Strength and Reinforcement Methods

The strength of your concrete is as critical as its thickness. Higher-strength concrete can often be successfully utilised at a thinner depth while still providing adequate support for heavy loads, particularly relevant in the context of a car hoist installation.

It is advisable to use concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry experts suggest opting for concrete with a strength of up to 32 MPa for applications that involve heavy-duty use and frequent vehicle lifting to ensure maximum safety.

Integrating reinforcement techniques is vital for significantly enhancing the durability of your concrete. The incorporation of steel mesh or rebar can dramatically improve the overall strength of your concrete floor, potentially allowing for the use of a thinner slab while still ensuring it effectively supports heavy loads throughout operation.

For most residential garages, SL82 mesh presents a reliable option. It offers sufficient strength for the majority of car hoists without incurring excessive costs, which is a vital consideration for budget-conscious homeowners.

If you have concerns regarding potential cracking, consider integrating fibres into your concrete mix. This addition can assist in mitigating the formation and propagation of small cracks over time, thereby improving the longevity of your installation.

Key Installation Factors for Ensuring Optimal Car Hoist Performance

When it comes to installing a car hoist, meticulous site preparation and ongoing floor maintenance are of utmost importance. By paying careful attention to concrete specifications and ensuring proper floor upkeep, you can guarantee the safe and prolonged operation of your hoist, ultimately protecting your investment.

Vital Site Preparation and Concrete Pouring Techniques for Car Hoist Installation

Before the installation of your car hoist, it is imperative to verify that your concrete floor meets all essential specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Furthermore, the slab must be perfectly level and free from any cracks to ensure optimal performance and safety during use.

For new concrete pours, it is crucial to utilise steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Additionally, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability for the equipment.

Avoid positioning the hoist over expansion joints or weak areas of the concrete. If you are uncertain about the strength and integrity of your floor, consulting a professional who can accurately assess its condition is highly advisable to ensure safe operation.

Essential Maintenance Practices for Your Car Hoist After Installation

Once your car hoist is installed, it is crucial to regularly monitor the condition of the concrete surrounding it. Be vigilant for any cracks, chips, or signs of stress, addressing any issues promptly to prevent larger complications that could affect the hoist's functionality and safety.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to structural issues that compromise safety. Additionally, using protective mats under the lift arms can help minimise wear and tear on the floor, thereby extending its lifespan and maintaining its integrity.

Regularly checking the tightness of the anchor bolts is also vital, as loose bolts can damage the concrete and render the hoist unsafe for operational use. This straightforward maintenance task can prevent costly repairs and ensure safe usage of the equipment over time.

Consider applying a sealant to the concrete to protect against stains and moisture. Such measures can significantly prolong the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment in the long run.

Frequently Asked Questions About Car Hoist Installation and Concrete Requirements

Installing a car hoist requires careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some frequently asked questions related to the concrete requirements for various types of lifts.

What is the minimum concrete thickness required for a two-post lift installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer's specifications, as certain models may necessitate thicker slabs for safe operation to prevent any potential hazards.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist requires a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and devoid of any cracks to ensure effective and safe operation. It is prudent to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, ensuring peace of mind and safety during use.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards that could endanger users and vehicles alike. If your existing floor does not meet the required thickness, adding a new layer of concrete may be necessary to achieve the appropriate depth for safe operation.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use, thus avoiding potential failures.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilised with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It is advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements to ensure safe lifting.

What factors should be considered when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a smart choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximise safety and efficiency, preventing any potential issues down the line.
