Dedicated Circuits for Heavy Tool Workshop Power Solutions

If you have a shed on a rural property and are contemplating its conversion into a fully operational workshop, prioritising the electrical setup is essential. Operating a MIG welder, air compressor, and table saw on the same circuit as your home may lead to significant complications, including frequent tripped breakers, flickering lights, and dangerous overload scenarios that threaten safety and hinder effective operation.

This detailed guide outlines the key components of wiring a dependable workshop in rural regions of the Mid North Coast. We will examine the significance of dedicated circuits, sub-boards, and the advantages of three-phase power for handling larger machinery. If your requirements are limited to basic power needs—such as lighting and a few outlets—please refer to our guide on Shed Wiring on Acreage for a suitable starting point. This article specifically addresses workshops that demand considerable power for more intensive tasks.

Why Dedicated Circuits Are Essential for Workshop Power Management

Many homes operate multiple power outlets on shared circuits, which is often adequate for low-power devices like kettles and televisions. issues arise when attempting to run a 32-amp MIG welder and an Air compressor simultaneously. This can result in serious complications if not managed correctly.

Consider the potential consequences of linking heavy machinery to household circuits:

• Frequent tripped breakers — A welder drawing over 30 amps on a 20-amp circuit will trip the breaker immediately or even cause the wiring to overheat before the breaker engages.
• Voltage drops — Extended cable runs from the main board to the shed can cause voltage sag. This results in your tools running at elevated temperatures, performing sluggishly, and wearing out more quickly.
• Power interruptions in the home — Your partner may experience a power outage in the kitchen due to the compressor starting up, often resulting in unwanted conversations.
• Heightened fire risks — Overloaded wiring within walls and cable runs is a leading cause of electrical fires in rural settings.

Implementing dedicated circuits can effectively mitigate these challenges. Each heavy tool should have its own dedicated circuit, appropriately sized for its load, along with separate breaker protection. This configuration ensures that nothing is shared, thereby preventing overload.

Assess the Power Needs of Common Workshop Tools

Before your electrician can create an effective circuit layout, understanding the power requirements of your tools is vital. Below is a breakdown of the typical power draws for common workshop equipment:

• MIG welder — Requires between 15A and 32A depending on the model. Larger 240V welders typically operate at the higher end. Three-phase units will have different power specifications (more on that later).
• Air compressor — Consumes approximately 10A to 15A. The startup surge can be considerable—compressor motors often draw 3 to 4 times their running current for a few seconds upon initiation.
• Table saw — Generally utilises between 10A to 15A for a quality cabinet saw. Less expensive contractor saws may consume less power, but you are most likely not looking for a budget option.
• Lathe (wood or metal) — Similar to table saws, these typically require between 10A and 15A, with metal lathes usually consuming more power.
• Dust extractor — Approximately 10A for a single-phase unit. It must operate continuously while using other tools, meaning it should have its own circuit.
• Plasma cutter — Draws between 20A and 30A, similar to a welder, thus requiring a dedicated circuit.

When you total the power consumption, it becomes clear that a single 20-amp circuit from the house will not be adequate. A well-equipped workshop can easily require 80 to 100+ amps across all circuits when operating at full capacity, underscoring the need for a comprehensive electrical plan.

Choose the Right Circuit Breaker Size and Incorporate RCD Protection

Every circuit in your workshop necessitates a breaker that matches the cable size and anticipated load. Your electrician will calculate this based on your equipment, but as a general guideline, please consider the following:

• 15A or 20A circuits — Ideal for general power points, dust extractors, lighting circuits, and lighter tools.
• 32A circuits — Crucial for welders, plasma cutters, and other heavy single-phase machinery that requires substantial power.
• Three-phase breakers — These should be sized according to specific equipment demands (details below).

RCD protection is vital. In line with AS/NZS 3000 (the Australian Wiring Rules), all power and lighting circuits must include RCD (safety switch) protection. This legal requirement aims to protect against the high-risk nature of workshop environments.
Concrete floors, metal tools, dust, and moisture raise the likelihood of earth faults. RCDs quickly cut power if there is a current leak to earth, which can differentiate between a minor shock and a serious injury.

Typically, your electrician will implement a combination of RCDs and MCBs (miniature circuit breakers), or RCBO units that combine both functionalities. RCBOs are particularly beneficial in workshops because a fault in one circuit does not disrupt power to others, resulting in a more dependable electrical system.

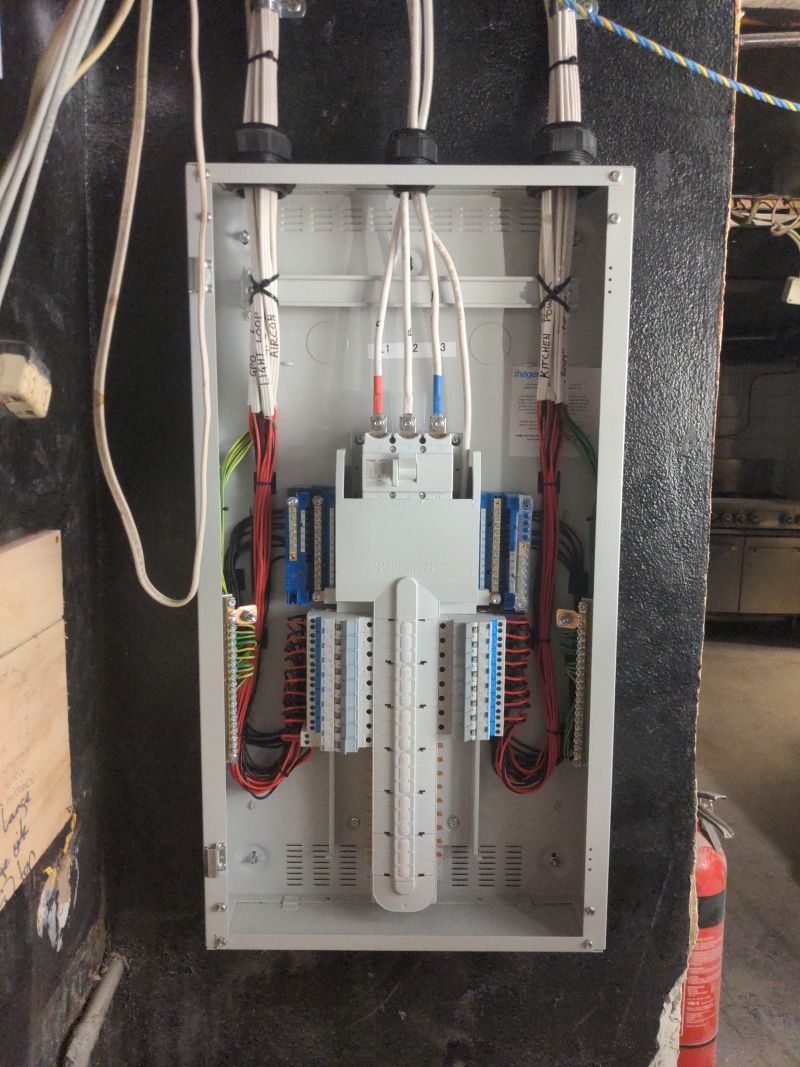

Install a Dedicated Sub-Board to Fulfil Your Workshop's Electrical Requirements

Rather than running multiple individual cables back to the main switchboard, installing a dedicated sub-board in your workshop presents a more effective solution. Below are the benefits:

• Shorter cable runs — One heavy feed cable connects from the house (or a separate meter) to the workshop board, followed by shorter runs from the sub-board to each outlet. This setup reduces voltage drop and decreases cable costs.
• Streamlined fault diagnosis — Each circuit is clearly labelled and easily accessible within the workshop. If a breaker trips, you won’t need to return to the house to reset it, enhancing efficiency.
• Future expansion — A properly sized sub-board allows for the addition of more circuits in the future, facilitating the incorporation of new tools later.
• Isolation capability — You can switch off all workshop power from a single main switch without affecting the house's electricity, which is a crucial safety feature.

If your house switchboard is outdated or operating at full capacity, an upgrade may be necessary to adequately support the workshop sub-board. Older ceramic fuse boards are unlikely to safely manage the increased load.

A typical workshop sub-board setup includes a main switch, individual RCBOs for each circuit, a dedicated lighting circuit, and a surge protection device. We will size the incoming feed cable based on the total expected load plus a buffer for future additions to ensure long-term efficiency.

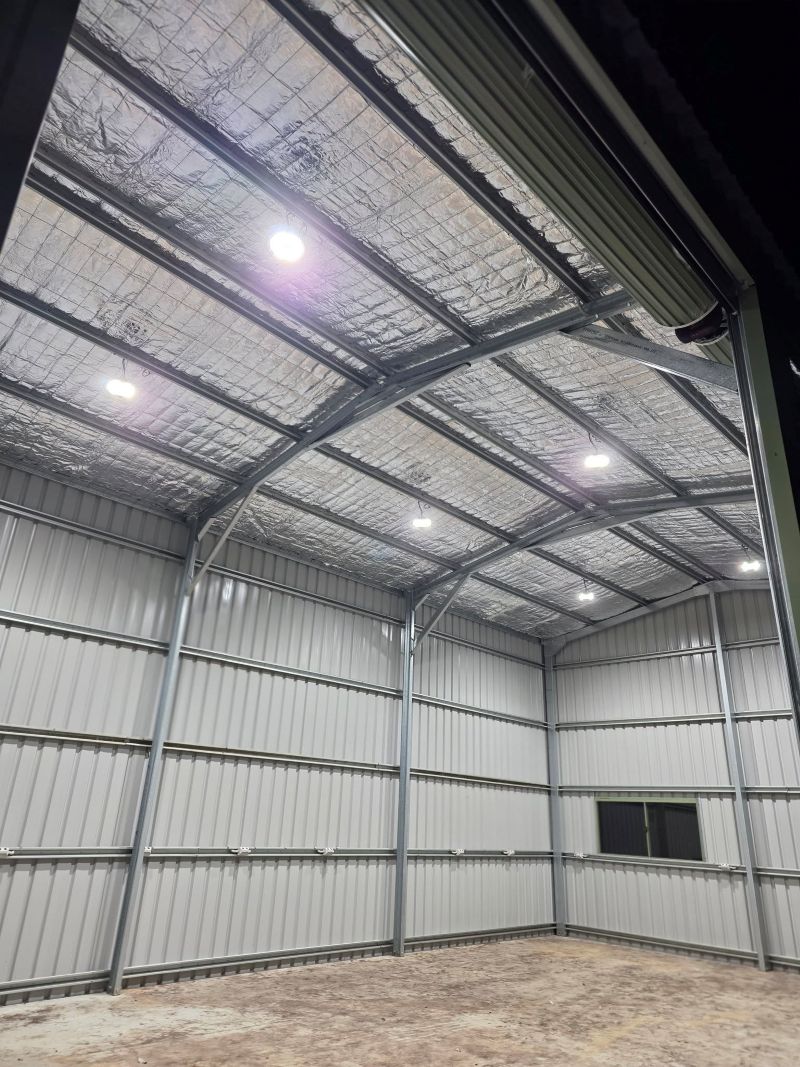

Create a Comprehensive Lighting Plan for Your Workshop

Sufficient lighting is essential for safety in your workshop. Clear visibility is critical, particularly when handling sharp blades and hot materials. Below are some important lighting considerations:

• High-lumen LED battens — LED panels or battens provide bright, even illumination throughout the space. Aim for a minimum of 500 lux at bench height to ensure optimal visibility.
• Dust-proof fittings — Standard lights can become obstructed with sawdust and metal shavings. Opt for IP-rated fittings that are dust and moisture resistant for durability and safety.
• Task lighting at workstations — While overhead lighting covers the general area, focused lighting at the workbench, lathe, and drill press is crucial for precision work, enhancing both productivity and safety.
• Separate lighting circuit — Lighting should operate on its own circuit, ensuring illumination remains while a power circuit trips. Being left in the dark next to a running table saw poses a significant safety risk.

We have extensive experience with lighting layouts in commercial environments. Our team can assist you in developing a workshop lighting strategy that significantly improves your working space while adhering to safety standards.

Plan for Effective Ventilation and Dust Extraction Circuits

When performing woodworking or welding, ensuring adequate ventilation is just as crucial as having sufficient electrical power. Dust extraction systems and exhaust fans require their dedicated circuits due to several important considerations:

• Continuous operation — Your dust extractor must run whenever you are cutting. It cannot share a circuit with the tool it serves, as this would compromise both safety and effectiveness.
• Motor startup loads — Dust extraction fans and collectors can experience significant startup surges, similar to compressors, which necessitate dedicated circuits.
• Interlocked switching — In a well-designed workshop, the dust extractor can be wired to activate automatically when specific tools are powered on. This requires careful circuit design and planning.

Plan for at least one dedicated 15A circuit for dust extraction and another for general ventilation to ensure proper airflow. If you are using a cyclone-style dust collection system, it may require a 20A circuit based on motor specifications.

Unlock the Benefits of Three-Phase Power for Heavy Machinery

When engaging in intensive metalwork or operating large compressors (5HP+) or commercial-grade woodworking machinery, single-phase power may reach its limits. Three-phase power offers several distinct advantages:

• Enhanced power capacity — Three-phase motors are more efficient and provide greater power without the excessive startup surges typically associated with single-phase motors.
• Support for larger welders and plasma cutters — Industrial MIG/TIG welders and CNC plasma tables generally operate on three-phase power, ensuring optimal performance.
• Smoother operation — Three-phase motors operate more smoothly and run cooler, extending the lifespan of your tools and enhancing overall efficiency.

Access to three-phase power in rural regions of the Mid North Coast depends on availability at the street level. Some properties may already have a three-phase supply, while others might require a phase converter or a new connection from Essential Energy.
For further information, refer to our guide on Do I Need Three-Phase Power on My Property?

If three-phase power is available, your workshop will require the installation of a three-phase switchboard equipped with suitably rated breakers and an effective earthing system to ensure safety and compliance.

Protect Your Equipment with Surge Protection

Tools featuring electronic controls, variable frequency drives (VFDs), digital displays, and inverter welders are particularly vulnerable to voltage spikes. Your workshop generates surges every time a large motor starts or stops. Coupled with the voltage instabilities often associated with rural power lines, your equipment is at significant risk.

Installing a surge protection device (SPD) at the sub-board can intercept voltage spikes before they affect your tools. This is a cost-effective measure compared to the expense of replacing the electronic components of a $3,000 welder or CNC controller.

If your property is susceptible to storms—something common in the Mid North Coast—we recommend adding surge protection at the main switchboard to safeguard against lightning-induced surges that could damage your equipment.

For properties dependent on a generator for backup power, incorporating a generator changeover switch ensures smooth transitions between mains power and generator supply without risking back-feeding or damaging connected equipment.

Incorporate Additional Features into Your Workshop Wiring Design

Here are several additional features to integrate into your workshop wiring from the outset:

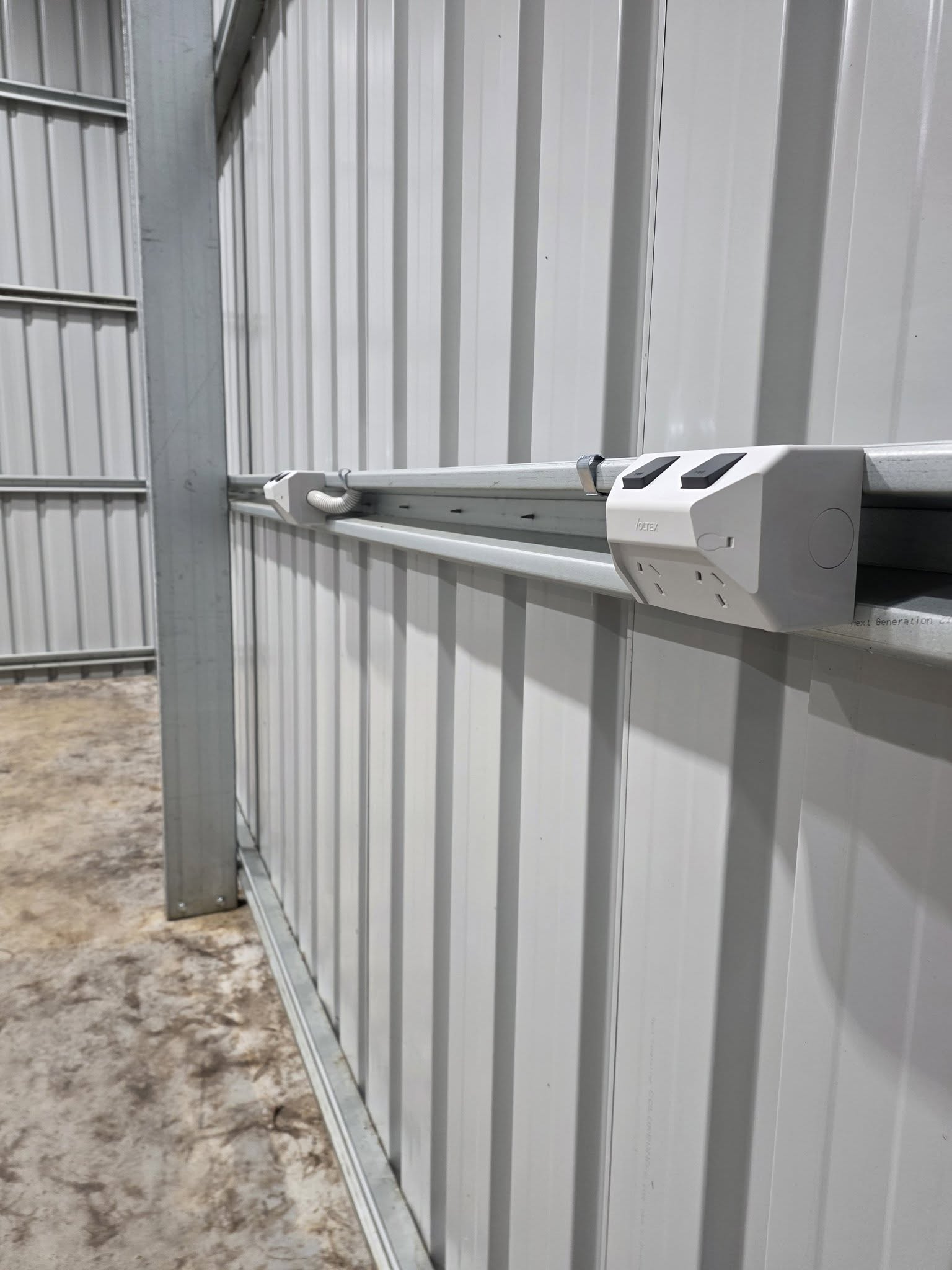

• Ample power points — Install more power points and switches than you think you will need. Use weatherproof GPOs if the workshop is open-sided. Consider double power points at every bench and outlets conveniently located near key machinery.
• Data and communications — If you require internet access for streaming music, operating a CNC machine, or monitoring security cameras, plan for data and TV wiring concurrently with the electrical setup. It is far easier to run cables during the initial fit-out than after the walls are completed.
• External lighting — Include floodlights outside the workshop to facilitate access during early mornings and late evenings, particularly in rural areas that lack adequate street lighting.
• EV or equipment charging — If you are using electric equipment (such as battery-powered tools, an electric vehicle, or an electric quad bike), implement a dedicated charging circuit to prevent overloads on general outlets.

Calculate the Costs of Your Workshop Electrical Fit-Out

Cost estimates will vary based on the size of the workshop, the number of circuits needed, and whether three-phase power is necessary. As a rough guideline for the Mid North Coast, consider the following:

• Basic single-phase setup (sub-board, 4–6 circuits, lighting) — Starting from $5,000
• Complete dedicated sub-board (8–12 circuits, multiple heavy tool circuits, dust extraction, comprehensive lighting design) — Starting from $10,000
• Three-phase workshop build (three-phase supply, dedicated board, heavy equipment circuits, complete fit-out) — Starting from $15,000+

These figures represent starting points. Complex layouts, lengthy cable runs from the mains, or the need for upgrades from Essential Energy will increase overall costs. We offer transparent quotes tailored to your specific workshop and equipment needs—there are no hidden fees involved.

Crucial Reminder: All Electrical Work Must Be Performed by Licensed Professionals

This is a vital point to stress. In New South Wales, all electrical wiring tasks must be conducted by a licensed electrician. This includes the installation of new circuits, sub-boards, power points, and the connection of equipment. There is no DIY exemption for electrical work, even on your own property, to ensure safety and compliance.

Hack-It Electrical Solutions holds NSW Electrical Contractor Licence #230609C and operates throughout Bellingen, Coffs Harbour, Sawtell, Nambucca Heads, Woolgoolga, <a href="https://limitsofstrategy.com/three-phase-power-guide-for-mid-north-coast-homes/">Urunga</a>, Dorrigo, Valla Beach, and Toormina.

Engaging in unlicensed electrical work can void your insurance, create significant safety hazards, and lead to substantial fines. If someone offers to perform the work cheaply without a licence, it is not a saving—it is a risk that could have severe consequences.

Your Questions Answered: Frequently Asked Questions

Is It Possible to Operate My Welder from a Standard Power Point?

Small stick welders (up to around 140A output) can indeed be used with a standard 10A or 15A power point. larger units require a dedicated circuit. A MIG welder with a capacity of 200A or more connected to a 10-amp GPO will trip the breaker immediately or potentially lead to overheating of the wiring if the breaker is faulty. If you are welding regularly, it is essential to have a dedicated 32A circuit installed for safety and efficiency.

How Many Circuits Are Typically Required in a Workshop?

The number of circuits needed will depend on your tools, but a well-equipped workshop generally requires a minimum of 8 to 12 circuits. This includes dedicated circuits for each heavy tool (welder, compressor, plasma cutter), general power point circuits, dust extraction, lighting, and a couple of spares for future additions. We customise the design based on your specific equipment list to ensure optimal functionality.

Is Three-Phase Power Necessary for a Home Workshop?

Not necessarily. Most home workshops function adequately on single-phase power with dedicated circuits. Three-phase power is only required if you are using commercial-grade equipment, such as large compressors (5HP+), three-phase welders, or CNC machines. Refer to our comprehensive guide on Do I Need Three-Phase Power on My Property? to determine if it aligns with your needs and operations.

Can My Existing Switchboard Support a Workshop?

It is possible. If your house switchboard is modern and has spare capacity, we can often connect a workshop sub-board to it. If it consists of an outdated ceramic fuse board or is fully loaded, an upgrade will be necessary before proceeding. Our team will assess this during the quoting process to ensure your workshop is adequately powered.

What Is the Typical Duration for a Workshop Electrical Fit-Out?

A basic single-phase setup can typically be completed within 1 to 2 days. A full fit-out encompassing multiple heavy circuits, three-phase power, and comprehensive lighting usually takes 3 to 5 days, depending on complexity and the distances for cable runs. We will provide a timeline along with your quote to keep you informed throughout the process.

Ensure Your Workshop Is Properly Wired for Optimal Efficiency

If you are setting up a workshop on your property and wish to ensure it is done correctly from the outset, contact us. We will visit your site, evaluate your space and equipment list, and develop a tailored plan that meets your power requirements without compromising safety or quality.
