Victorian Tile Restoration Uncovers Hidden Safety Risks

How to Recognise Movement and Loose Grout in Victorian Tile Floors: Addressing Safety Concerns in Stapenhill

Noticing movement in your Victorian tile floor or discovering loose grout joints often indicates an issue that goes beyond superficial wear. The homeowner in this Stapenhill residence was increasingly concerned about the movement across various sections of the entrance floor. Loose tiles, cracking joints, and uneven surfaces created a significant trip hazard. While this floor was part of an original Edwardian entranceway that retained much of its historical charm, decades of wear, previous repair attempts, and ongoing movement had made it vulnerable to further deterioration.

Performing a Comprehensive Assessment of Initial Floor Conditions

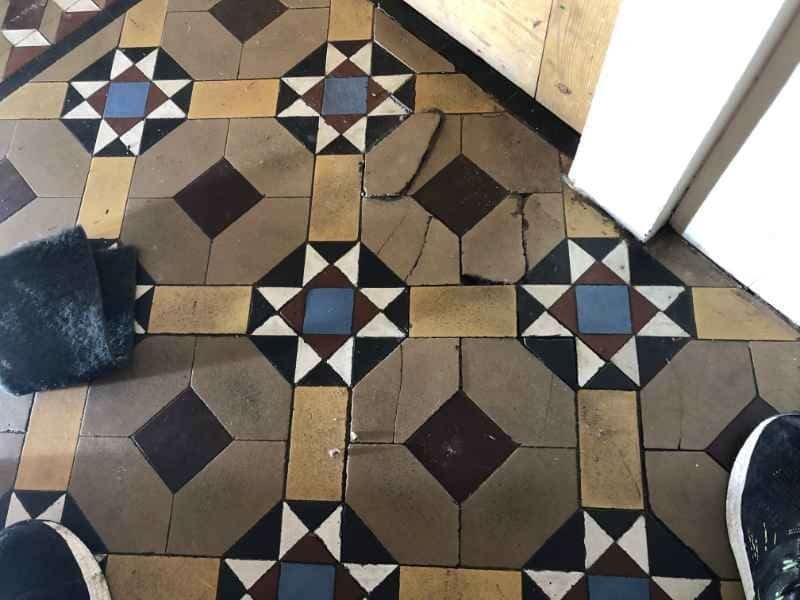

The entrance featured a striking arrangement of Victorian geometric tiles, typical of properties from the era of Burton's industrial growth. Years of foot traffic had resulted in visible wear in the central walkway, while the perimeter areas appeared relatively stable. Several tiles shifted underfoot, and gaps emerged between adjoining sections due to ineffective earlier repairs. The homeowner's primary concern was safety, especially in the entrance area that experienced heavy daily foot traffic.

Loose grout was widespread in several sections of the floor. In many areas, previous repair attempts had used harder materials that did not bond effectively with the surrounding tiles. Small fragments had broken away from the joints, exposing edges to further wear. The uneven surfaces between adjacent tiles created an uncomfortable sensation underfoot and gave the floor a neglected appearance, despite regular cleaning.

Throughout the hallway, the condition of the clay surface varied significantly. Some sections retained vibrant colours and definition, while others displayed darker patches where years of grime had settled into the naturally porous tile body. Historic clay floors of this type gradually absorb contaminants over time, which is why routine washing often becomes less effective as the years progress. This resulted in a floor that appeared worn and inconsistent, even though the original geometric design was largely intact.

A closer inspection revealed evidence of multiple prior attempts to fix isolated defects rather than addressing the floor as a cohesive whole. Various sections had been lifted and replaced at different times, leading to subtle differences in level and alignment. Some joints contained deteriorated material that had become brittle and discoloured, while other repairs appeared significantly newer. These inconsistencies disrupted the visual harmony of the original layout.

Although the entrance floor remained usable, the practical implications of the deterioration were becoming increasingly difficult to ignore. Tiles shifted slightly when weight was applied, grout continued to loosen, and the uneven surface complicated cleaning efforts. Dirt accumulated in open joints and around unstable areas, creating a cycle where the floor appeared progressively more worn. The homeowner recognised that cosmetic cleaning would not resolve these issues, making it essential to ascertain the full extent of the underlying problems.

The original pattern of the floor was one of the property's most attractive features. Decorative borders and contrasting clay colours continued to define the layout, contributing to the entrance's period character. Despite the movement and visible wear, most of the historical materials remained intact, adding to the frustration. The floor appeared neglected, yet much of the original fabric was salvageable.

The project began with a thorough evaluation of the floor's visible condition instead of immediate intervention. Loose sections, open joints, worn traffic routes, and areas of previous repairs were meticulously documented. Identifying the extent of the deterioration provided clarity on the floor’s condition and established the foundation for subsequent actions.

What Is the Connection Between Uneven Victorian Tiles and Inadequate Repairs?

Uneven tiles and open joints often reveal that previous repairs have not effectively addressed issues below the surface. In this Stapenhill hallway, the movement affected not only individual tiles but also the interconnected areas where the supporting bed had lost stability. As the support weakened, tiles began to shift independently, resulting in the gradual opening of surrounding joints.

Loose tiles seldom fail in isolation; the support beneath them has changed.

The visible symptoms clarified why dirt accumulated rapidly around the affected areas. Open joints trapped contaminants, while movement allowed debris to penetrate deeper into the gaps whenever the floor was walked on. Historic clay tiles are inherently absorbent, meaning that once dirt infiltrates weakened joints, it becomes increasingly challenging to remove through standard cleaning methods. Similar issues, along with long-term solutions, are discussed in this guide to restoring Victorian tiles properly.

Why Is It Essential to Stabilise Loose Victorian Tiles Prior to Restoration?

Consistently cleaning a floor with loose tiles often delays addressing the underlying issues and may make ongoing deterioration easier to overlook. Once the extent of the movement had been assessed, the planned cleaning was paused to prioritise stabilising the unstable areas. Attempting restoration before stabilisation would only leave the root problem unresolved and could potentially exacerbate the situation.

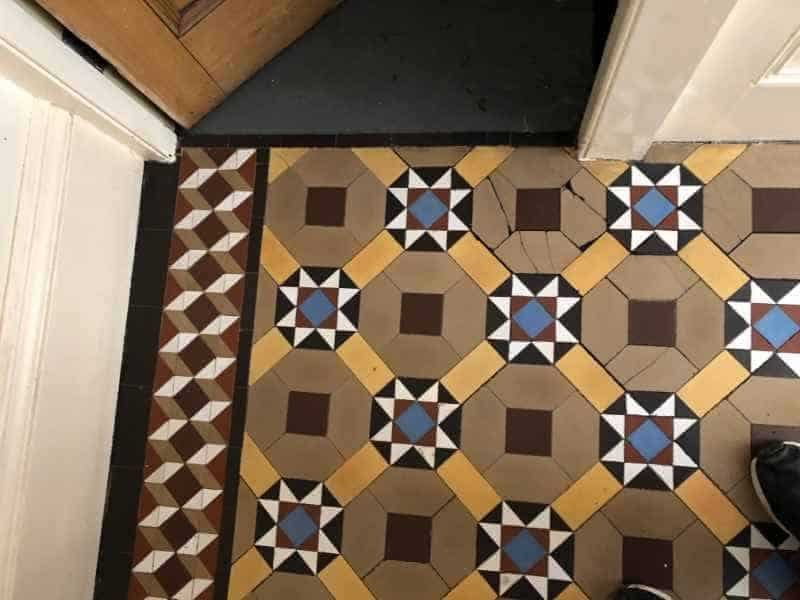

Cleaning alone would have temporarily improved the appearance while leaving the movement beneath the floor unchanged. Stabilisation first enabled the careful removal of affected tiles, elimination of unsuitable materials, and preparation of the supporting bed before relaying the original pieces in their proper positions. Damaged joints were repaired simultaneously, restoring continuity across the entire floor.

Only after resolving the structural issues could the subsequent restoration stages proceed in the correct order. This method protected the original tiles, reduced the likelihood of future movement, and ensured that the cleaning and finishing work yielded enduring results rather than a temporary fix.

How to Transform a Safety Hazard into a Functional Entrance: The Advantages of Stable Victorian Tiles

Homeowners often first notice stability improvements following a successful Victorian tile restoration project. After completing the repairs, the entrance floor no longer shifted under pressure, and the previously uneven areas felt secure underfoot. The removal of loose sections transformed the hallway from a source of anxiety into a functional, reliable entrance once more.

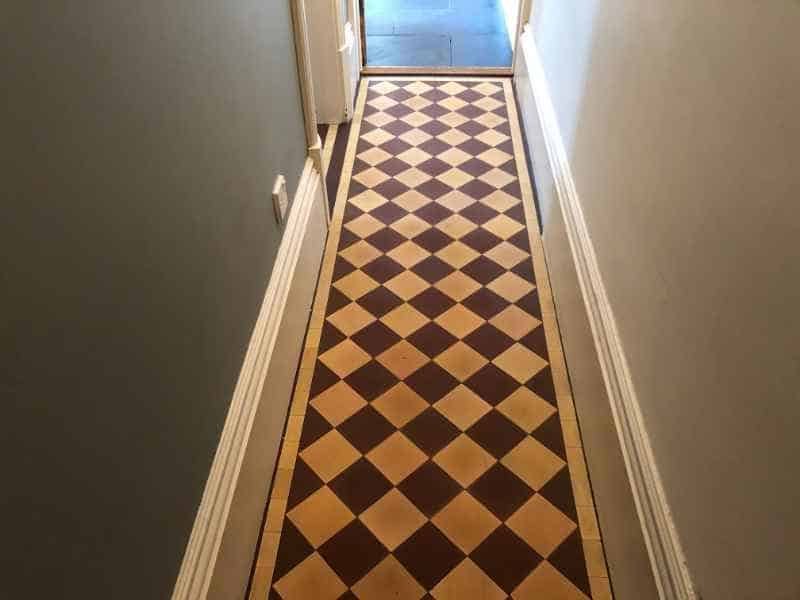

The visual enhancements were equally striking. Repaired joints resulted in a more uniform appearance, while thorough cleaning revealed colours and intricate patterns that had been concealed by years of grime. A breathable protective treatment was applied to resist future staining while still allowing moisture to dissipate naturally through the floor structure.

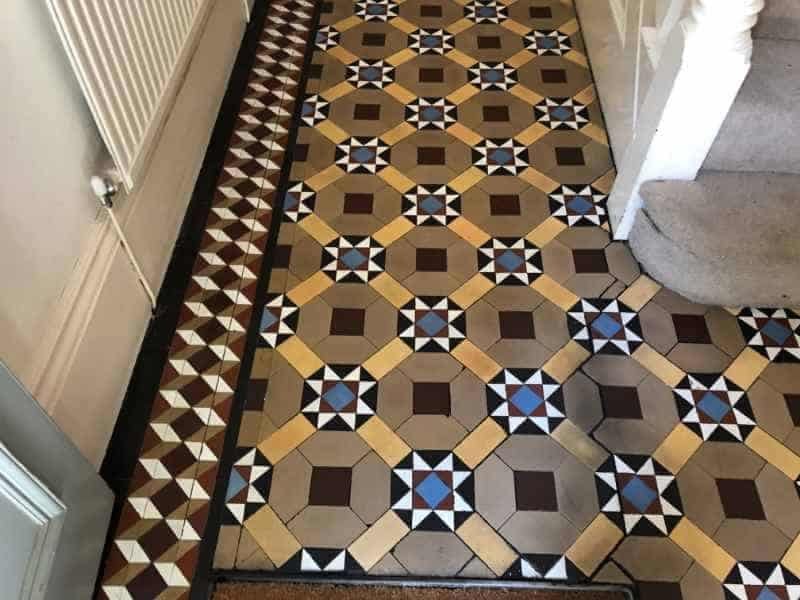

A fully restored Victorian tile floor showcases the original fired matte surface with consistent colours and patterns. When a topical sealer is appropriate, it can add a subtle protective sheen without altering the character of the period floor. The completed entrance maintained its historical aesthetic while becoming safer, cleaner, and considerably easier to maintain.

How Can You Gain Insights into Restoring Victorian Tile Floors to Avoid Previous Mistakes?

Overlooking the underlying causes of tile movement often leads to recurring issues. One of the most significant lessons learned from this Stapenhill project was that visible symptoms seldom occur in isolation. Loose joints, uneven levels, and movement underfoot were all interconnected, and focusing solely on appearance would never yield a lasting solution.

This project also underscored the necessity of executing the work in the correct order. Stabilisation was the initial step, followed by cleaning, joint repairs, and protective finishing. This systematic approach preserved the original clay material while effectively addressing the homeowner’s concerns.

Readers seeking broader insights can explore the main Victorian tile cleaning resource, which delves into common issues, maintenance considerations, and restoration principles for historic clay floors. Understanding the causes of deterioration remains the most effective way to prevent repeating previous mistakes, helping period entrances maintain their original character for many years.
